Star Rail Ā· 6063-T6
Hover or tap to zoom
Image 1 of 3 Ā· Product gallery
Architectural grade
Heavy Square Bracket & Cover - SRB 06
Star Rail architectural profile

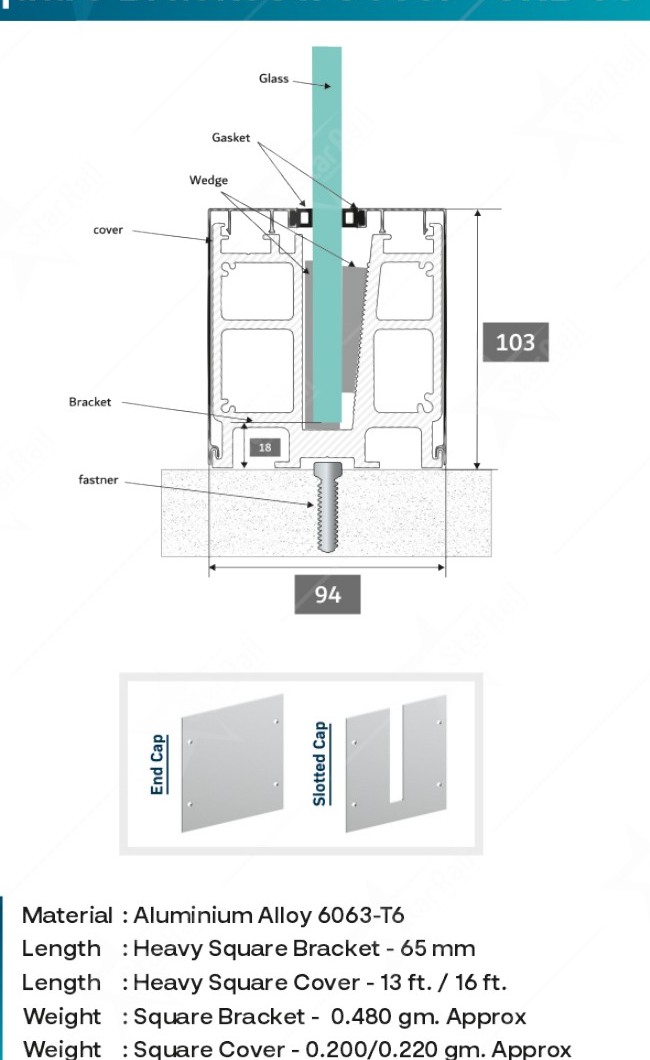

Heavy square bracket and cover system for architectural glass railings. Designed for 12 mm glass with gasket and wedge clamping, secured to the floor. Square bracket length: 65 mm. Square cover lengths: 13 ft and 16 ft. Section dimensions: 103 mm high x 94 mm wide with an 18 mm glass channel. Approximate weight: bracket 480 g; cover 200 / 220 g. Available in natural, powder-coated, wood-coated and anodized finishes.
Product specifications
- Material grade
- Aluminium Alloy 6063-T6
- Finish
- Natural, Powder Coating, Wood Coating, Anodized
- Size
- Bracket: 65 mm; cover: 13 ft / 16 ft; section: 103 x 94 mm; glass channel: 18 mm
- Category
- Heavy Square Bracket & Cover
Product highlights
- Designed for 12 mm glass
- Floor-mounted bracket and cover system
- 13 ft / 16 ft cover options
- Approx. weights: bracket 480 g; cover 200 / 220 g
- Natural, powder-coated, wood-coated or anodized finishes
